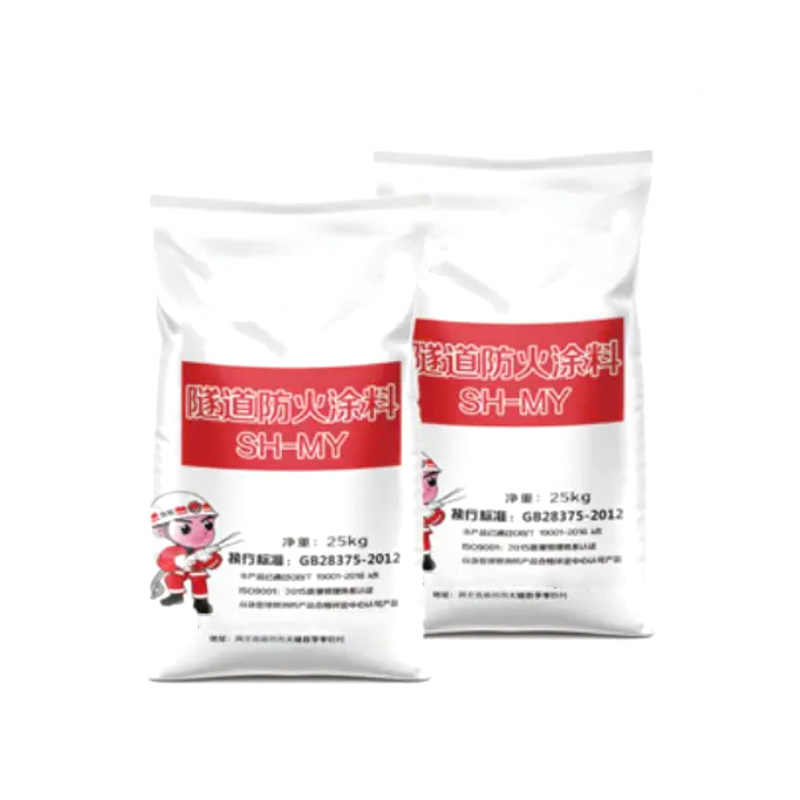

PRODUCT INTRODUCTION

The tunnel freproof coating is a non-expandable heat-insulating coating with light densily, low thermal conductivity and good fire resistance. lt is also a pollution-free water-based paint that can be sprayed on concrete surfaces such as highways, railways,and tunnels bymechanical soraving, Basicaly no dense smoke and loxic gases are produced during a fire. The coaling is 20mm and the fre resislancelimit exceeds 2.0h.
Executive standard: GB28375-2012

CONSTRUCTION METHOD

1. Scope: This coating can be sprayed or manally applied to the surface of concrete such as highways, railways, tunnels, etc. andcan also be used in culverts of underground railways to increase its fire resistance limit to more than 2.0h. Under no fire conditionsthis coating can also absorb sound.

2. General conditions for construction, room temperature> 0℃ above, humidity <90%, wind force <level 4. When the constuctiontemperature is below 0℃, it is necessary to add antifreeze to the factory. When the wind force is greater than level 4, it needs to be
sheltered slightly.

3. Base surface treatment: remove oil, float and sink, and remove water droplets, To achieve a clean surface, when the surface ofthe concrete is too smooth, measures such as roughening can be taken on the surface.

4. The spraying thickness of the first layer is 2mm, and the thickness of each subseguent layer is 6-8mm until the reguired thicknessis reached. The second layer can be sprayed only after the first layer is completely dry.

5. in the case of minor repairs, a spatula can be used for patching, Genraly, the spatula method is not suitable for large-areaconstuction.

6. Matters needing attention: Do not flush with water when the coating is not completely dry.TECHNICAL INDEX

PACKING AND SHIPPING

1.General cargo transportation.
2. Store in a cool, ventilated and dry environment at 0-35℃ to prevent rain and sun exposure.

The Quality Tunnel Fire Retardant Coating is expertly formulated to provide superior fire protection for tunnel structures, ensuring enhanced safety and durability. This high-performance coating effectively slows down flame spread and withstands extreme heat, protecting critical infrastructure during fire emergencies. Designed for long-lasting adhesion and resistance to corrosion, the Quality Tunnel Fire Retardant Coating maintains structural integrity under harsh environmental conditions. Easy to apply and maintain, it is ideal for use in tunnels, subways, and underground passages where fire safety is paramount. With its reliable performance and compliance with industry standards, this coating is the preferred choice for protecting tunnels from fire hazards. The Quality Tunnel Fire Retardant Coating combines advanced technology with durability to deliver effective fire resistance and peace of mind in demanding environments.
